Candidate Drilling Target on Mars Doesn't Pass Exam

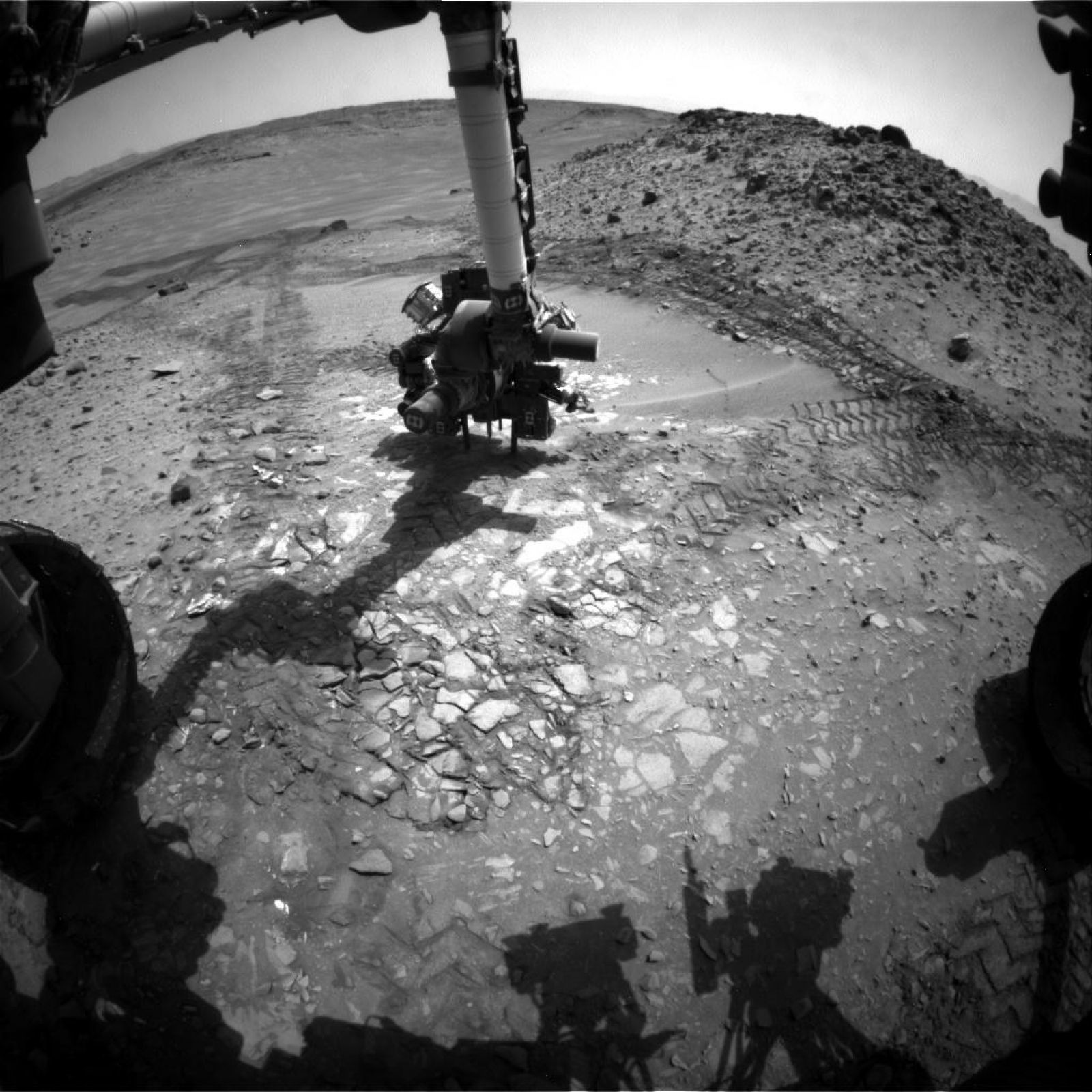

This image from the front Hazard Avoidance Camera (Hazcam) on NASA's Curiosity Mars rover shows the rover's drill in place during a test of whether the rock beneath it, "Bonanza King," would be an acceptable target for drilling to collect a sample. Subsequent analysis showed that the rock budged during the procedure and did not pass the test. The image was taken during the 724th Martian day, or sol, of Curiosity's work on Mars (Aug. 19, 2014, PDT). The rover was doing a mini-drill procedure, which is part of evaluating the target in advance of full-depth, sample-collection drilling. One step in the procedure, called "start hole," uses the hammering action of the percussive drill to create a small indentation in the rock. During this part of the test, the rock moved slightly, the rover sensed that instability in the target, and protective software properly halted the procedure. After analysis of the target's instability, the rover team decided on Aug. 21, 2014, to drive Curiosity away from this Bonanza King site and resume the trek toward long-term destinations on the slopes of Mount Sharp and perhaps a shorter-term science destination at an outcrop called "Pahrump Hills." The site in this southward-looking image is at the northeastern end of sandy-floored "Hidden Valley." The largest of the individual flat rocks in the foreground are a few inches (several centimeters) across. For scale, the rover's left front wheel, visible at left, is 20 inches (0.5 meter) in diameter. A map showing Hidden Valley is at http://photojournal.jpl.nasa.gov/catalog/PIA18408 . NASA's Jet Propulsion Laboratory, a division of the California Institute of Technology, Pasadena, manages the Mars Science Laboratory Project for NASA's Science Mission Directorate, Washington. JPL designed and built the project's Curiosity rover and the rover's Hazcams. More information about Curiosity is online at http://www.nasa.gov/msl and http://mars.jpl.nasa.gov/msl/ .

Image credits: NASA/JPL-Caltech
Image released by NASA on 2014-08-22 as catalog id PIA18603
