Tunable Laser Spectrometer on NASA's Curiosity Mars Rover

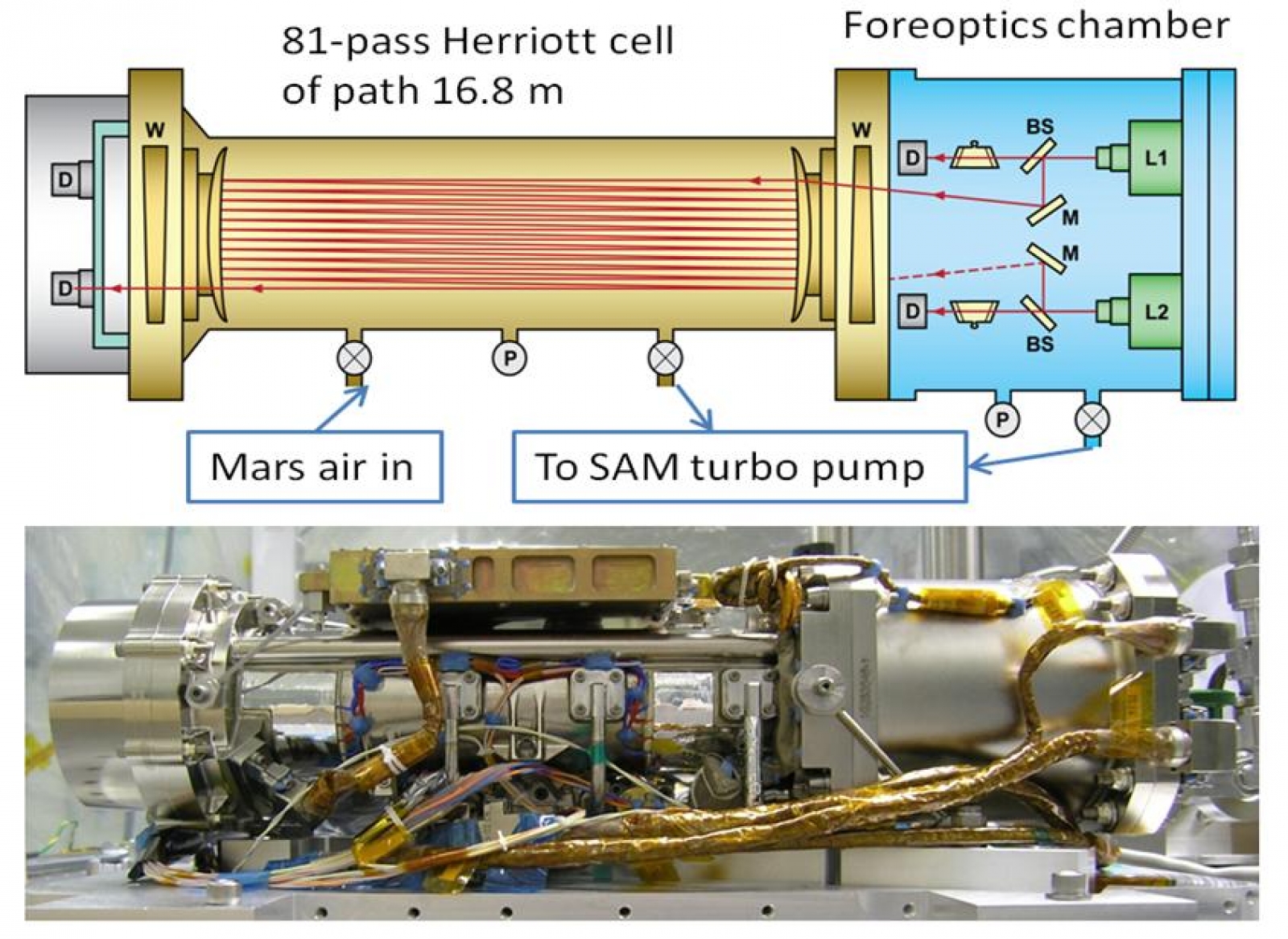

This graphic shows key features of the Tunable Laser Spectrometer (TLS), one of the instruments within the laboratory suite named Sample Analysis at Mars (SAM) aboard NASA's Curiosity Mars rover. The upper half of the graphic is a schematic illustration of TLS. The lower half is a photograph of it from before its installation into SAM. By measuring absorption of light at specific wavelengths, TLS measures concentrations of methane, carbon dioxide and water vapor in the Martian atmosphere. It includes a chamber called a Herriott cell, where a laser beam at a precisely tuned wavelength is reflected between mirrors to bounce back and forth through the sample of gas being analyzed. The laser passes through the sample 81 times, for a total length of 55 feet (16.8 meters), which makes the absorption easier to measure than would otherwise be possible with such a compact instrument. The TLS technology from Curiosity is being tested for use on Earth as utility-company safety equipment to check for leaks in pipelines carrying natural gas. Methane is a major component of natural gas. NASA's Mars Science Laboratory Project is using Curiosity in Mars' Gale Crater to assess ancient habitable environments and major changes in Martian environmental conditions. NASA's Jet Propulsion Laboratory, a division of the California Institute of Technology, Pasadena, built the rover and manages the project for NASA's Science Mission Directorate, Washington. JPL developed and built the TLS. NASA's Goddard Space Flight Center, Greenbelt, Maryland, built and operates SAM. More information about Curiosity is online at http://www.nasa.gov/msl and http://mars.jpl.nasa.gov/msl/ .

Image credits: NASA/JPL-Caltech
Image released by NASA on 2014-12-16 as catalog id PIA19086
