Clay Mineral Structure Similar to Clays Observed in Mudstone on Mars

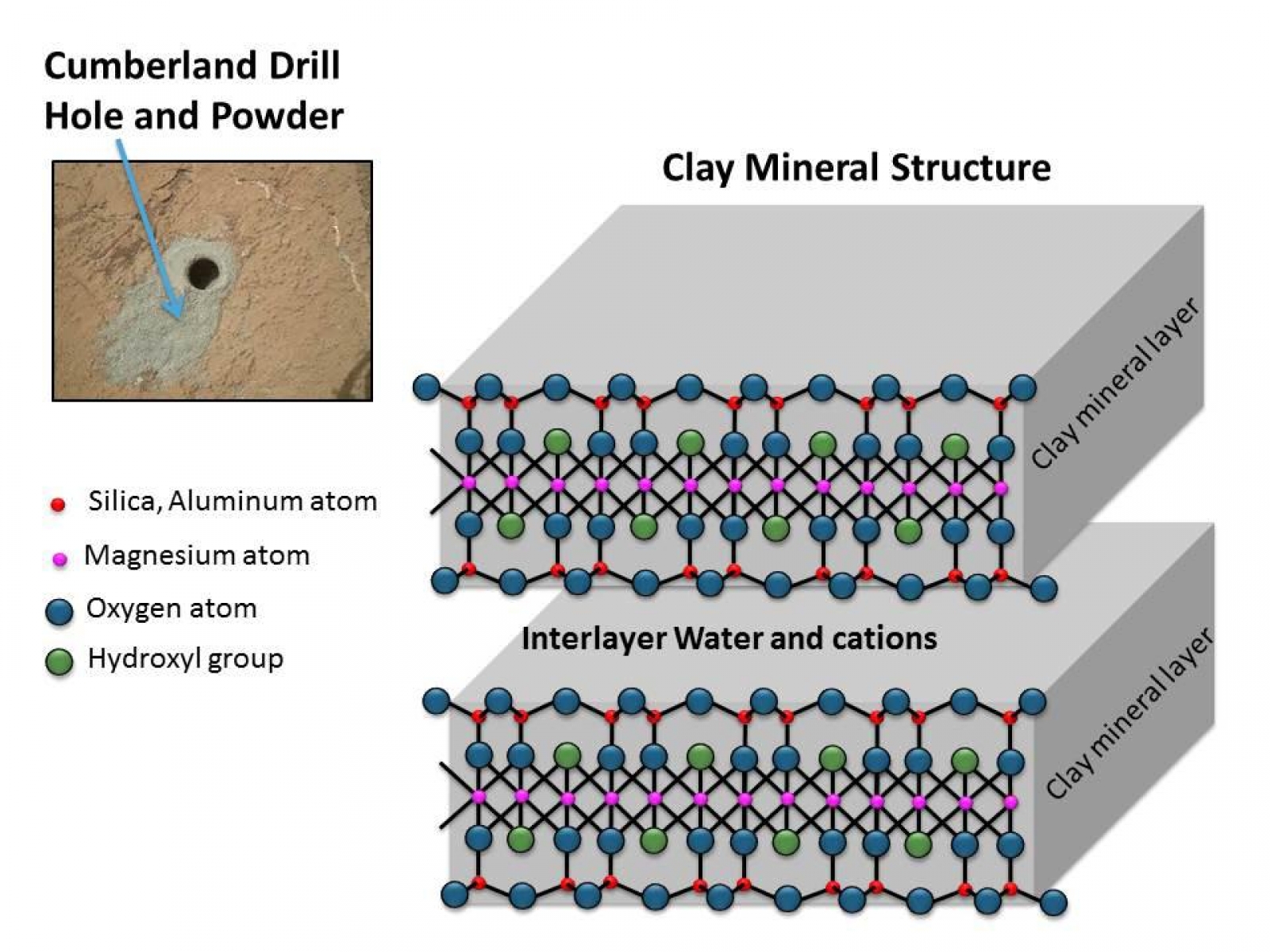

Clay minerals are composed of layers. Water and cations (positive-charged ions) can be stored between these layers. This schematic shows the atomic structure of the smallest units that make up the layers and interlayer region of clay minerals. This structure is similar to the clay mineral in drilled rock powder collected by NASA's Curiosity Mars rover and analyzed by the rover's Chemistry and Mineralogy (CheMin) and Sample Analysis at Mars (SAM) laboratory instruments. The rover drilled into rock targets "Cumberland" (in upper left insert) and "John Klein," both in the Sheepbed mudstone at Yellowknife Bay, Gale Crater, Mars. NASA's Jet Propulsion Laboratory, Pasadena, Calif., manages the Mars Science Laboratory Project and the mission's Curiosity rover for NASA's Science Mission Directorate in Washington. The rover was designed and assembled at JPL, a division of the California Institute of Technology in Pasadena. More information about Curiosity is online at http://www.nasa.gov/msl and http://mars.jpl.nasa.gov/msl/ .

Image credits: NASA/JPL-Caltech/MSSS
Image released by NASA on 2013-12-09 as catalog id PIA17598
