Before-and-After Blink of Curiosity 'Mini Drill' into Mars Rock

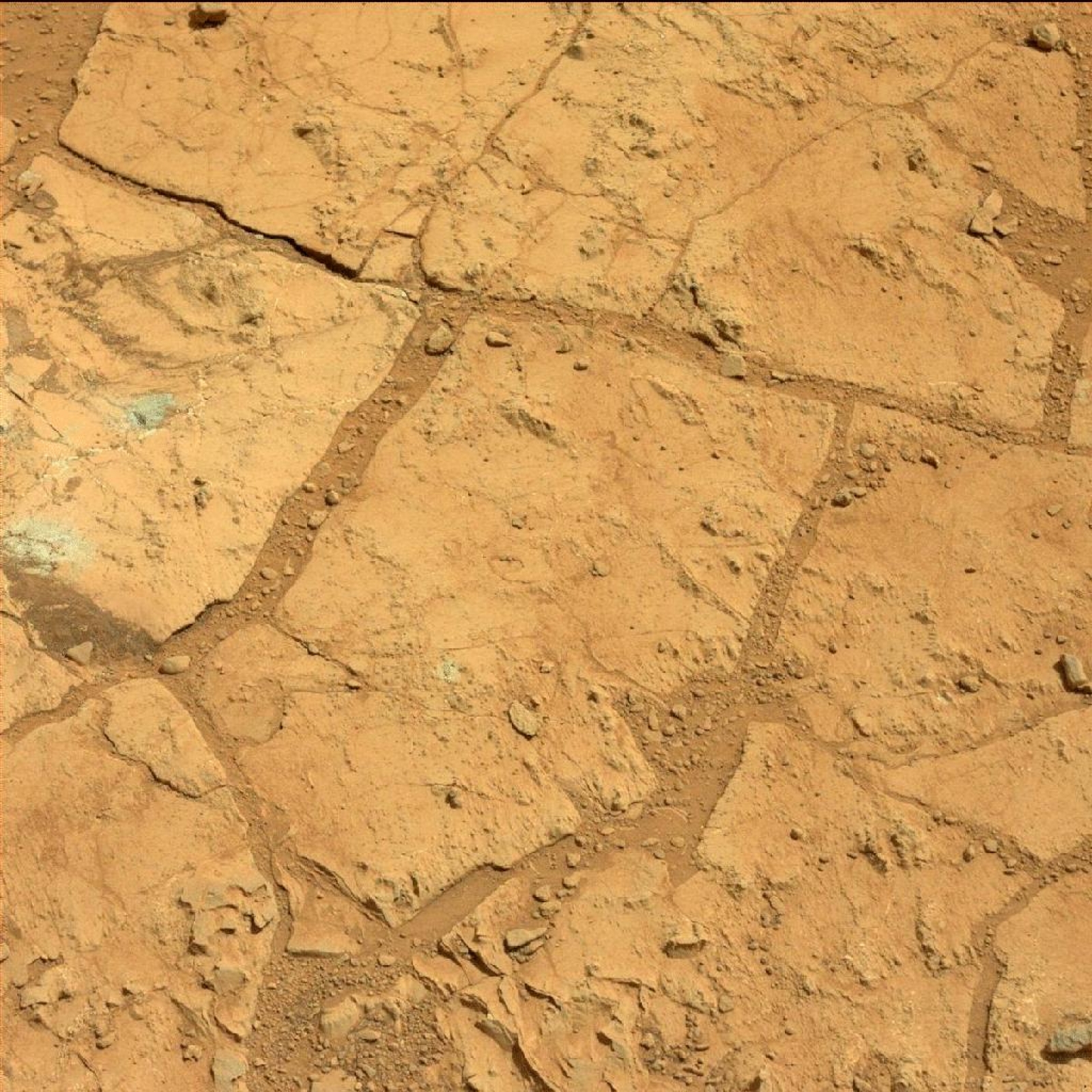

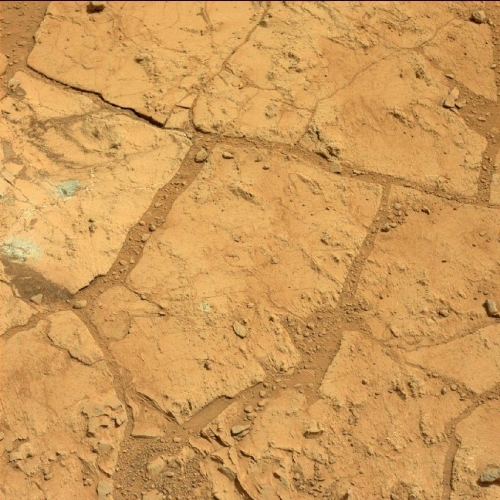

Click on the animation for larger view A blink pair of images taken before and after Curiosity performed a "mini drill" test on a Martian rock shows changes resulting from that activity. The resulting hole and surrounding pile of drill cuttings are not the only changes. The images were taken by the Mast Camera instrument on Curiosity. The diameter of the hole created by the drill is 0.63 inch (1.6 centimeters). The before image was taken on the 178th Martian day, or sol, of Curiosity's mission on Mars (Feb. 4, 2013). The drill test was performed on Sol 180 (Feb. 6, 2013) and the afterwards image was taken the same sol. The test drilling was a preparation for the mission's first full rock drilling. The location is on a patch of flat rock called "John Klein." If the cuttings are judged to be suitable for processing by the rover's sample handling mechanisms, the mission's first full drilling is planned for a nearby spot on John Klein. The full drilling will be the first rock drilling on Mars to collect a sample of material for analysis. JPL manages the Mars Science Laboratory/Curiosity for NASA's Science Mission Directorate in Washington. The rover was designed, developed and assembled at JPL, a division of the California Institute of Technology in Pasadena. For more about NASA's Curiosity mission, visit: http://www.jpl.nasa.gov/msl , http://www.nasa.gov/mars , and http://mars.jpl.nasa.gov/msl .

Image credits: NASA/JPL-Caltech/MSSS
Image released by NASA on 2013-02-07 as catalog id PIA16762
